Home  >  HVAC/R Components  >  Fan Blades  >  Blower Wheels  > MD1212-1/2CR 12.87 X 12.62

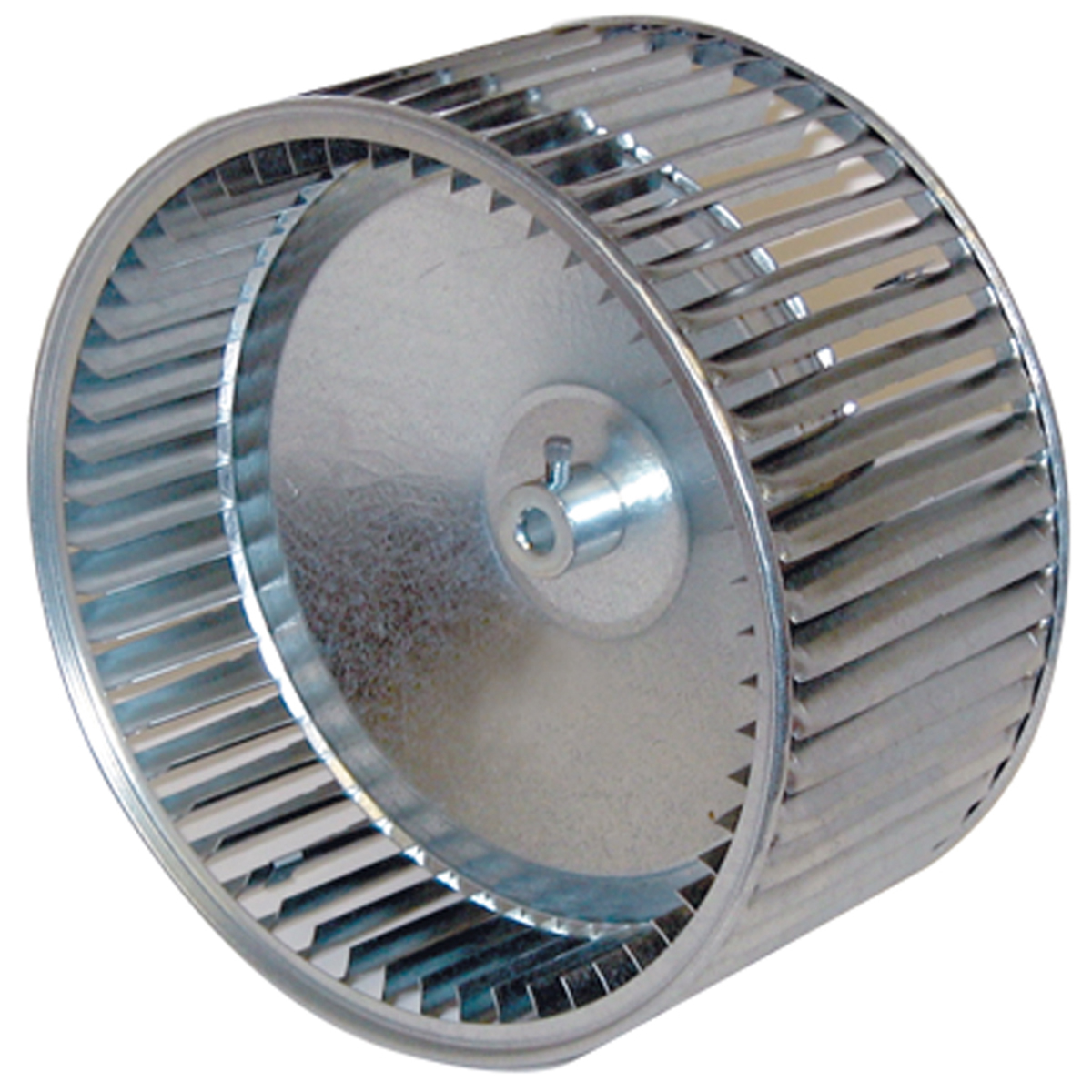

MD1212-1/2CR 12.87 X 12.62

Type Double-Inlet Blower Wheel Wheel Dia. (in.) 12 7/8 Wheel Depth (in.) 12 5/8 Bore Diameter (in.) 1/2 Rotation CW Material Galvanized Steel Max. RPM 1400 Center Disc Concave
Item #: 41355
MD1212-1/2CR 12.87

Double Inlet

airMARS Double inlet wheels are used in many popular air handlers. The wheels below are made of galvanized steel unless indicated otherwise. Rotation is determined viewing the hub extension.

Blower Wheels

Type
Double-Inlet Blower Wheel
Wheel Dia. (in.)
12 7/8
Wheel Depth (in.)
12 5/8
Bore Diameter (in.)
1/2
Rotation
CW
Material
Galvanized Steel
Max. RPM
1400
Center Disc
Concave
Brand
MARS
Pack Qty
1
Length
16.60 in.
Width
16.40 in.
Height
17.00 in.
Weight
15.2500 lbs
Harmonized Tariff Code
8414901040
UPC
685744413554
Country of Origin Code
US
Country of Origin Name
United States
